RP-0475

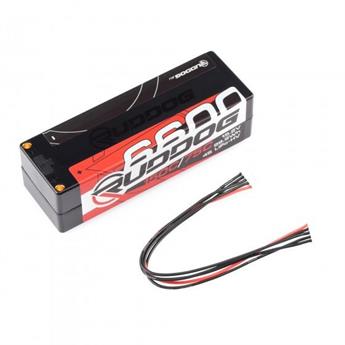

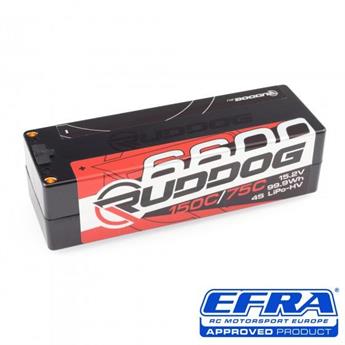

RUDDOG Distribution's latest addition to the Ruddog Racing line-up of competition batteries was specifically developed with 1/8th scale racing in mind. Made from silicon-graphene LiPo cells, the all new HV 4s pack provides you with maximum punch and high endurance.
Rated at 75C continuous / 150C burst, the EFRA approved 4S battery with a rated voltage of 15.2 V is the optimum power source for demanding 1/8th scale racing needs.
Features:
- HV silicon-graphene chemistry based on the proven 2021 line-up for low internal resistance and high capacity
- 75C continuous / 150C burst current rating
- Perfect choice for 1/8th scale racing
- EFRA approved
Specifications:
- Capacity: 6575mAh / 99.9Wh
- Nominal Voltage: 15.2V / 4S
- Discharge-Rate: 75C/150C
- Cell Type: Silicon-Graphene Lithium-Polymer
- Length: 138.9mm
- Width: 47.0mm
- Height: 38.5mm
- Weight: 475g
- Plug: 5mm
- Balancer-Plug: XH
Charging and storage instructions:
Never store your batteries fully charged and or fully discharged. We recommend to store the batteries at the nominal voltage of the battery. We also recommend to use the batteries regulary, if you don't go to the track, then cycle them once every two weeks. The batteries must not be stored in direct sunlight, this also includes your car during a hot summer day. For a long lifetime of your batteries we recommend a charging rate of 1C. A higher charging rate will decrease the lifetime of your battery significantly.
We recommend to use a lipo bag during charging your battery: https://www.ruddog.eu/RUDDOG-HD-LiPo-Charging-Bag-180x80x80mm
Installation:
When installing you battery, we recommend not to place them directly next to your motor. Should it not be possible to place your battery at a different place we strongly recommend the use of a motor fan to keep your motor cool and so also your battery. If you are looking for a motor fan, check out the RUDDOG aluminium fans, which are available in a 30mm and 40mm variant: https://www.ruddog.eu/RUDDOG-30mm-Aluminium-HV-High-Speed-Cooling-Fan and https://www.ruddog.eu/RUDDOG-40mm-Aluminium-HV-High-Speed-Cooling-Fan
RUDDOG batteries come without battery plugs. If you do not already have the right plugs, you can find a wide range of plugs here: https://www.ruddog.eu/Stecker
Limited Warranty:
We offer the German legal warranty time on all of our batteries. Inproper usage or storage can void this warranty.
